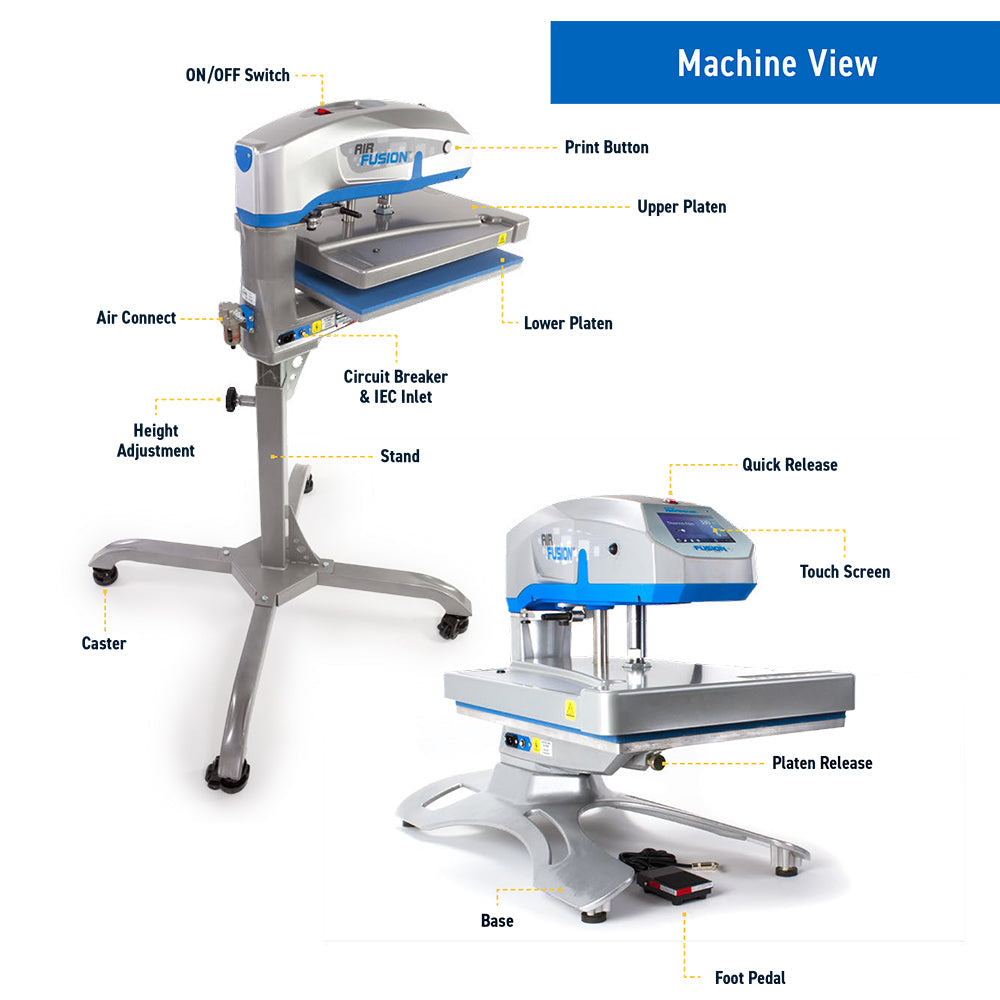

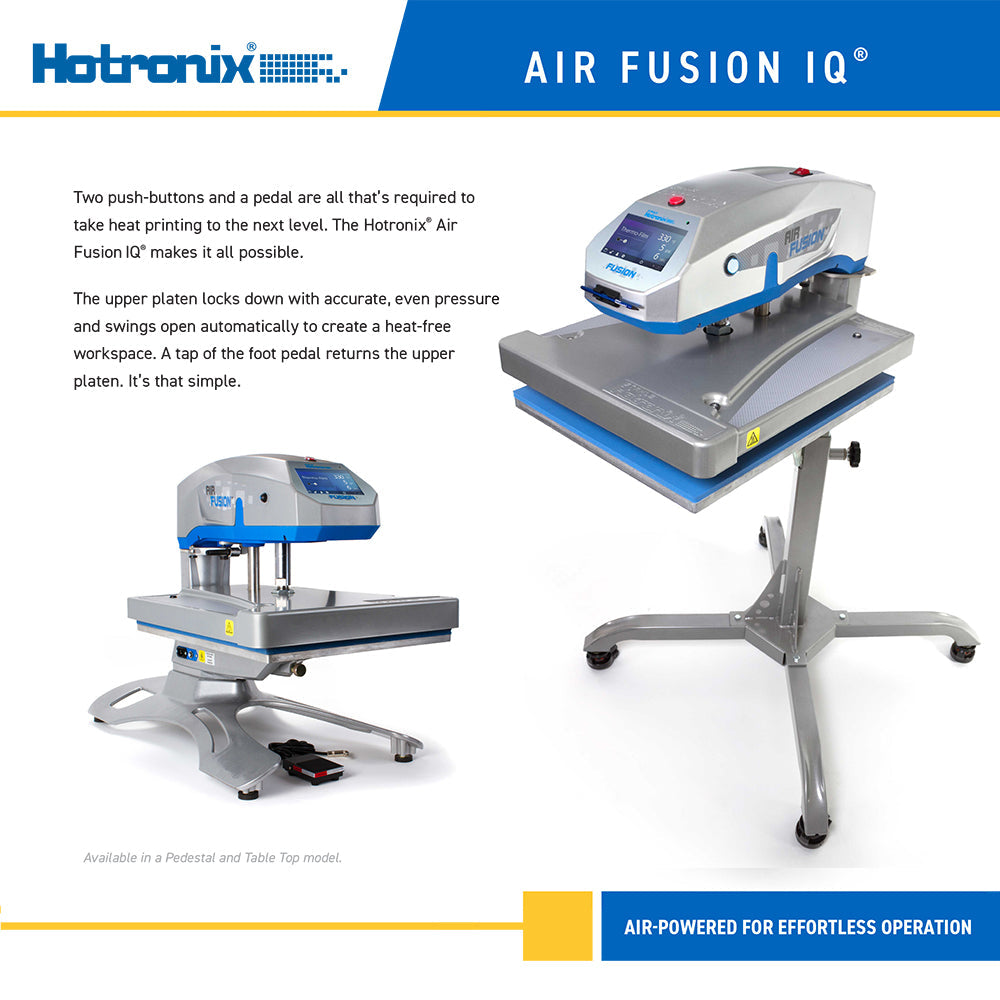

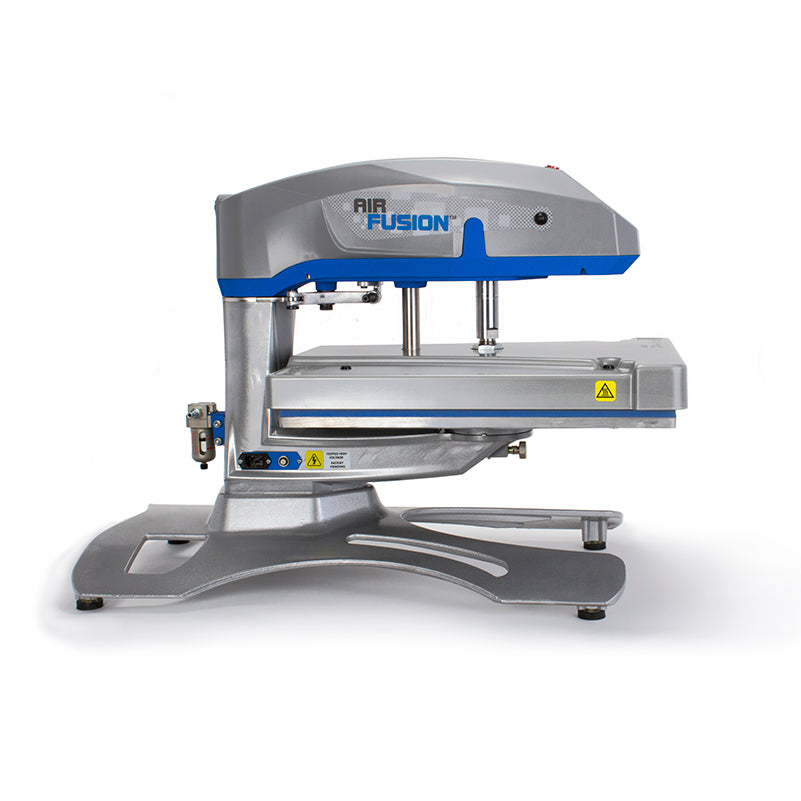

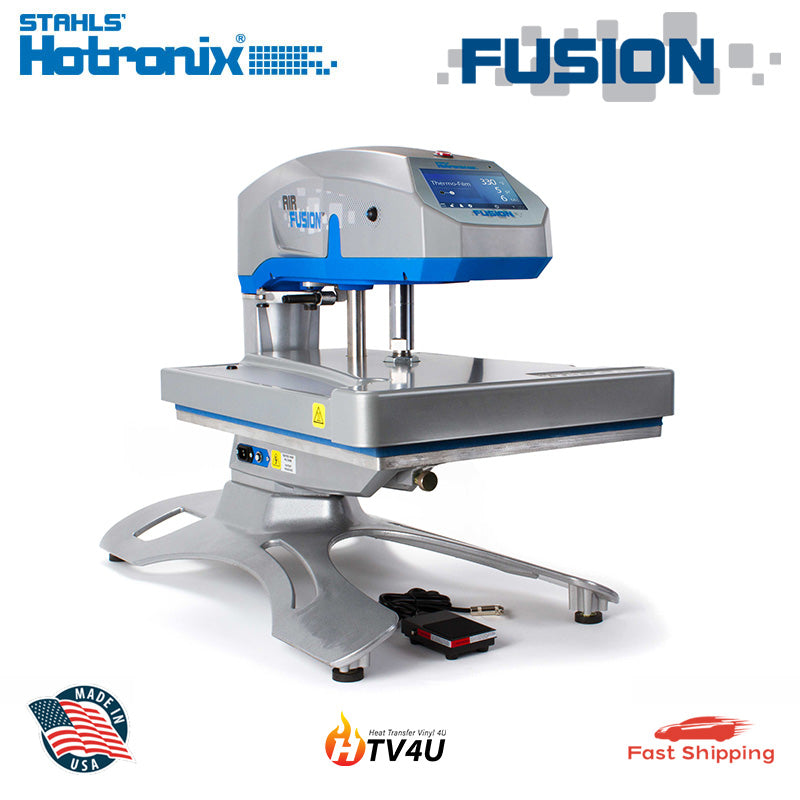

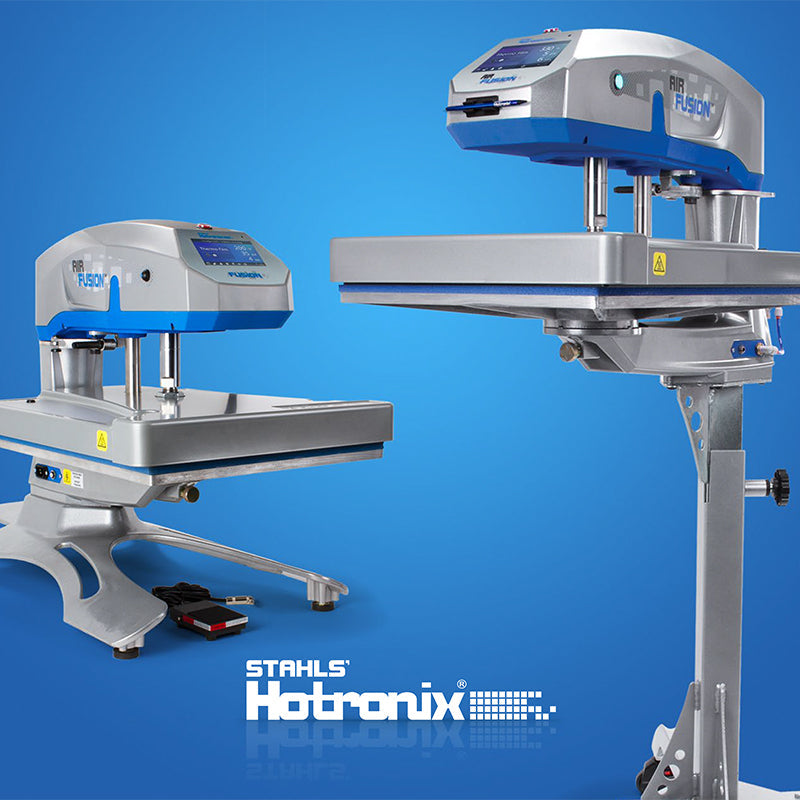

Stahls' Hotronix Air Fusion IQ Table Top Heat Press
Stahls' Hotronix Air Fusion IQ Table Top Heat Press
Production speed without the fatigue. The Air Fusion IQ Table Top brings air-powered, semi-automatic operation to your benchtop — a tap of two buttons swings the press for you, creating a heat-free workspace and consistent, even pressure on every transfer. With a touchscreen, stored presets, and Auto Adjust Pressure, it's built for shops pressing real volume in a compact footprint.
Key Features
- Air-powered semi-automatic — hands-free auto-swing reduces operator fatigue on long runs.
- Auto Adjust Pressure™ — four pressure/time settings that auto-adjust for each recipe.
- Heat-free workspace — the platen swings away from your hands between presses.

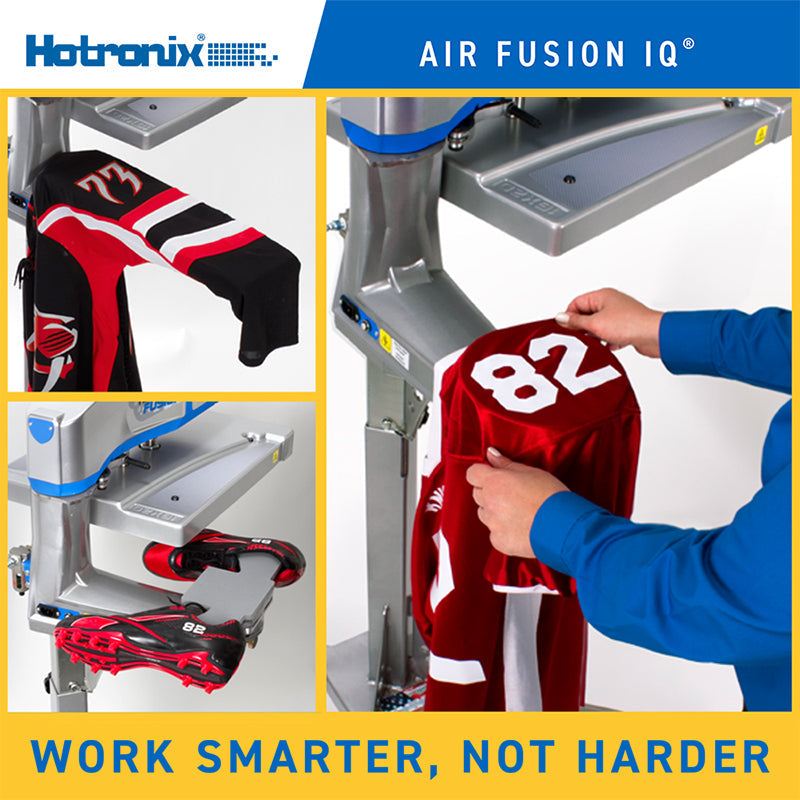

- EZ-On platen + Threadability™ — no pillows or pads needed; load front/back easily.
- Touchscreen + IQ Portal — stored presets, live readouts, reporting, and diagnostics.
Why Choose DTF4Prints?
When your DTF volume grows, an air-assisted press keeps quality high and operators fresh. We supply the Air Fusion IQ for shops scaling up — paired with the transfers and film to keep your line moving.
Applications
- Higher-volume DTF transfer pressing
- Production apparel decorating
- Shops wanting hands-free consistency on a benchtop
Specifications
- Platen size: 16" x 20" (¾" platen, fast-recovery heater)
- Operation: Air-powered semi-automatic (table top); requires external air compressor (not included), up to 120 PSI
- Controls: IQ touchscreen, Auto Adjust Pressure, stored presets, live time/temp/pressure readout
- Features: EZ-On platen (no pads), Threadability, 4-hr sleep mode, cycle counter
- Compliance/Build: UL/ULC/CE/RoHS, cast-aluminum, Made in USA
Usage Instructions
Connect a suitable air compressor, select your preset, load the garment, and use two-button operation to press. The platen auto-swings for heat-free loading. Peel transfers per film instructions.
