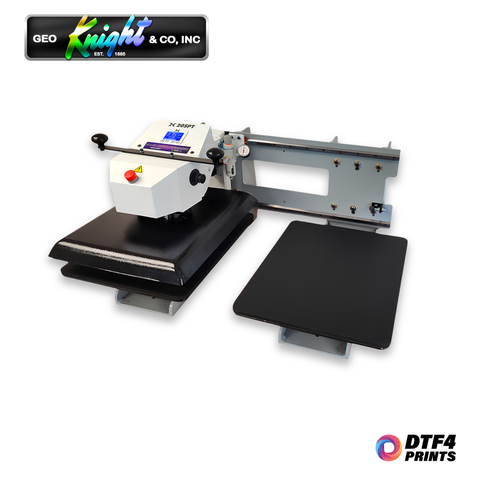

Geo Knight DK20SPT TWIN Air Operated Swing Away Heat Press 16" x 20"

Geo Knight DK20SPT TWIN Air Operated Swing Away Heat Press 16" x 20"

Regular price $4,950.00 USD
Regular price Sale price $4,950.00 USD
Sale Sold out
Geo Knight DK20SPT

Geo Knight DK20SPT TWIN Air Operated Swing Away Heat Press

The DK20SPT is the SAME Overall press as the DK20SP, with the SAME Features of the DK20SP, but in a **dual-shuttle twin-station** framework for increased operator production.

While one side is pressing, the operator can load and unload the other side, and greatly reduce both operator idle time and heat platen idle time.

Like the DK20SP single-table version, the DK20SPT has the same benefits of simple push button operation, fully digital temperature & time control, interchangeable All-Thread™ bottom tables, and solid casting design with an affordable automatic heat press price. It is available in a 16" x 20" heater block size.

For demanding press runs and super consistent results, the DK20SPT is an ideal press for meeting requirements that go beyond what a manual transfer press and operator can handle, as well as what a single loading table layout can provide. The DK20SPT is the industrial grade midrange solution between heavy duty manual heat presses such as the DK20 and DK20S and high production 394 Factory Shuttle Press machines.

*This product is excluded from all promotional discounts and offers.

USA Shipping:
Ships via LTL Freight only due to the nature of the parcel.
For the shipping cost, please contact or e-mail us for a quote:
+1 (714) 523-0344 / heattransfer4u@gmail.com

Shipping cost will be calculated separately and depends on the shipping location (commercial/residential).

Payment can be made on Custom Payment.

FEATURES:

• TWIN All-Thread™ table loading design
• Fully digital temperature control 32°-600°F range
• Automatic digital timer & dual pre-press timer
• Air regulator and gauge 20-100 PSI range (compressor req)
• Total applied force of 3000 lbs max
• 70 Programmable presets
• Solid steel welded framework
• Interchangeable tables
• SuperCoil-Microwinding™heater technology
• Accommodates materials up to 2" thick
• Temperature readout accuracy +-2°F – can show °C or °F
• User selectable end-of-cycle alarms
• Records number of pressing cycles done
• Teflon-coated 3/4″ thick heat platen
• Lifetime warranty on heat platen
• 5-year warranty on frame
3-year warranty on control
• 1 year warranty on entire press

SPECIFICATION:
WEIGHT: 270 lbs.
ELECTRICAL: 1800W / 15A / 120V
DIMENSIONS: 32" D x 40" W x 24" H
