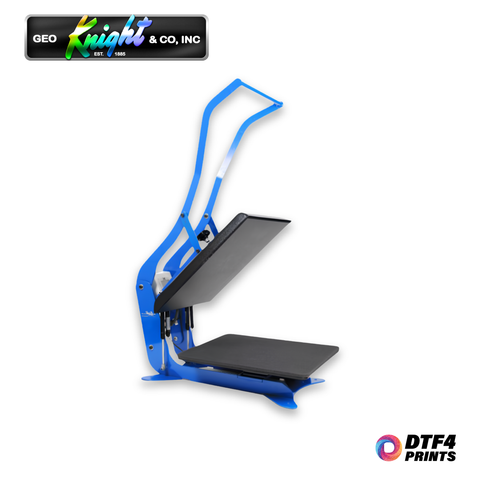

Geo Knight DK20A Auto-Release Pop-Up Digital Clamshell Heat Press 16" x 20"

Geo Knight DK20A Auto-Release Pop-Up Digital Clamshell Heat Press 16" x 20"

Regular price $1,650.00 USD
Regular price Sale price $1,650.00 USD
Sale Sold out
Geo Knight DK20A Heat Press

Geo Knight DK20A Auto-Release Pop-Up Digital Clamshell

DESCRIPTION:

The DK20A is the AUTO-RELEASE “Pop-Up” version of our largest manual clamshell. This amazing high-tech feature makes your Digital Knight clamshell act like a semi-automatic, air operated press, without the compressor! Simply close the press as you normally do, and at the end of the digital timing cycle the press releases automatically.

The Auto-Release upgrade also features the “HOVER” feature. This means when the handle is lowered without fully clamping the machine, the press will hover over the work, usually needed for curing purposes. At the end of the time cycle the press releases automatically as usual.

The DK20A 16×20 clamshell press opens for full access to the lower bottom table. It is important to note that the back of the heat platen raises above and away from the bottom table, providing better access than other clamshell presses. The frame support allows operators to slide shirts over the table with complete drape space
around and underneath the loading area. Interchangeable bottom tables for smaller pressing areas are available. This press is ideal for environments with space limitations, and for users who need more portability and mobility than the over weight swingaway presses.

*This product is excluded from all promotional discounts and offers.

FEATURES:
• All-Thread™ table loading design
• Auto-Release POP-UP automatic open at end of time cycle
• Auto-Release “Hover” position cures materials without pressing
• Fully digital temperature control 32°-600°F range
• Automatic digital timer & dual pre-press timer
• Digital Pressure Bar Graph
• Super-portable light machine weight – 103 lbs !
• Extreme high pressure capability
• Hardened high-strength pivot points
• Interchangeable tables
• Solid Steel framework
• SuperCoil-Microwinding™ heater technology
• Self lifting gas-spring, & wide opening
• Temperature readout accuracy +-2°F – can show °C or °F
• User selectable end-of-cycle alarms
• Records number of pressing cycles done
• Teflon-coated 3/4" thick heat platen
SPECS:
WEIGHT: 103 lbs.
ELECTRICAL: 1800W / 15A / 110V
DIMENSIONS: 36 x 17 x 16
