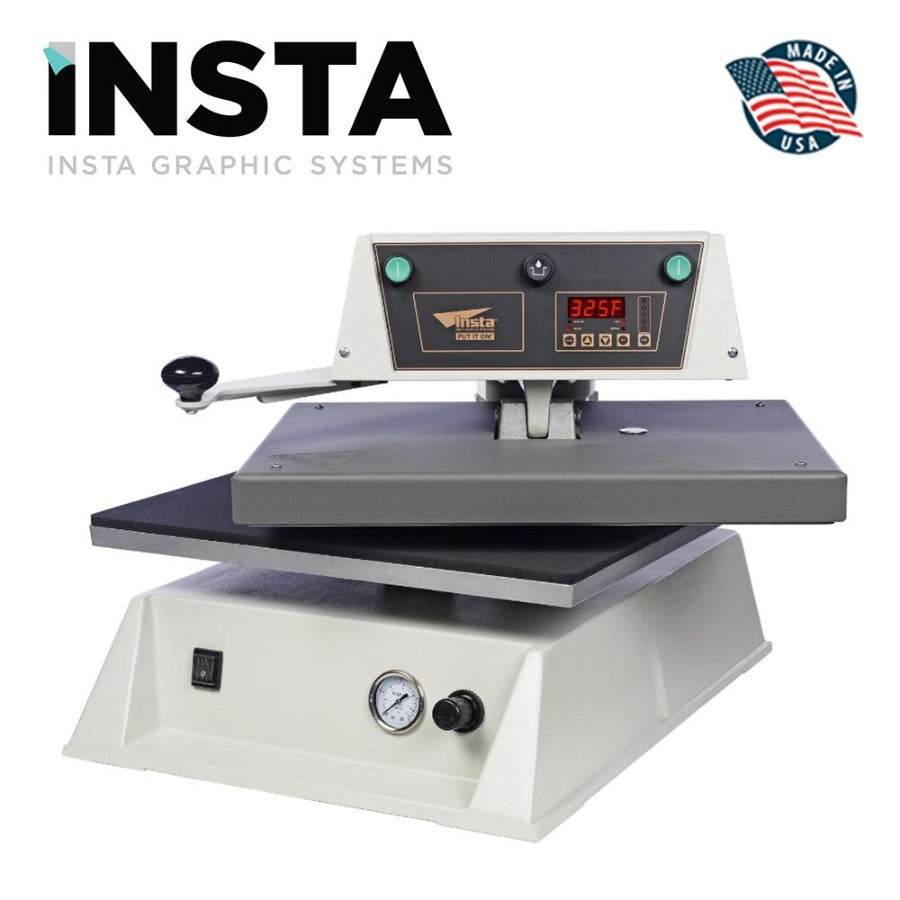

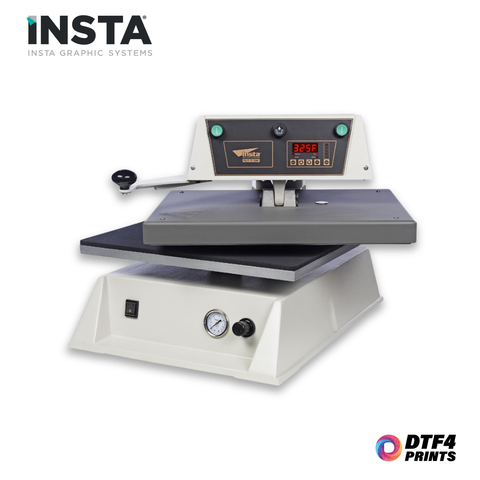

Insta 728 Automatic Swing-Away Heat Press 15" x 20"
Insta 728 Automatic Swing-Away Heat Press 15" x 20"
$4,995.00
 |
 |
|
Insta 728 Automatic Swing-Away Heat Press The Solution to Your High Volume Production Needs Insta’s Model 728 Automatic Swing Away heat press machine is a work-horse and has long been considered the most reliable and durable heat press on the market. Its air-driven operation prevents operator fatigue and promotes consistent production speed. The 728 is used globally, by contractors for many of the world’s top apparel brands, and is chosen for its fast heat recovery, accurate temperature, even pressure and its ability to achieve consistent results under 24/7 use. *This product is excluded from all promotional discounts and offers. |
| DESCRIPTION: |
|
QUALITY YOU CAN COUNT ON The Model 728 has been strategically designed to generate & evenly distribute tremendous pressure throughout its upper and lower platens. And, its cast-in tubular heating element heats the metal from within, to produce constant and long lasting heat. A successful heat transfer application requires 3 key elements to work in tandem– time, temperature & pressure. The Model 728 has mastered those elements and gets the job done every time. |
| SPECIFICATIONS: |
| • Made of cast aluminum for maximum durability. • Swing-away upper platen. • Fully adjustable pneumatic pressure control located at the front of the machine for easy access. • Integrated digital controller which features controls for time, temperature (Fahrenheit or Centigrade), 5 programmable presets & cycle counter. • Protective heat shroud. • Warranty – Lifetime warranty on the upper heating element, 1 year on parts & 90 days on labor. • UL, CuL & CE approved. RoHS/WEE compliant. • Made in the USA. |
| WORKING SPACE: | |
| DEPTH: | 30" |
| WIDTH: | 33" |
| HEIGHT: | 25.75" |
| POWER: | 120 volt – 1750 Watts, 14.6 Amps 230 volt – 2200 Watts, 9.6 Amps |
| PLATEN SIZE: | 15”x 20” standard (38.1 x 50.8 cm) Additional accessory platens available for purchase – 6”x 6”, 6”x 9”, 6”x 15”, 10”x 15”, 15”x 15” & 4.5”x 5” Double Sleeve |
| SHIPPING WEIGHT: | 180 lbs. |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
