3 Stage Filtration: Rigid Separated Filters

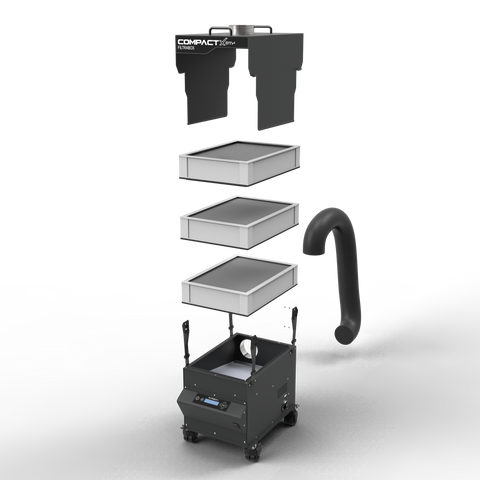

Each individual filter has a specific function within Filtrabox’s 3 stages of filtration:
-
Polymer Pre-filter: The liquid-resistant polymer pre-filter protects the critical downstream HEPA filter from clogging ambient dust and liquid for overload. The filter media is encased in a strong aluminum cartridge to resist contamination bypass. The high surface area mini-pleat filter media ensures high capacity and efficiency for small applications.
-
Hydrophobic HEPA filter: The Hydrophobic HEPA media not only resists moisture but is also extremely strong and sheds excess liquid to provide the perfect barrier to the DTF Fog. The filter media is encased in a rigid aluminum cartridge to resist contamination bypass. Learn More. The high surface area mini-pleat filter media ensures high capacity and efficiency for small applications.
-
Gas Filter: The gas filter is filled with pure activated carbon to remove unpleasant odors at the molecular level. 10 lbs of the adsorption media ensure high capacity and efficiency for small applications.

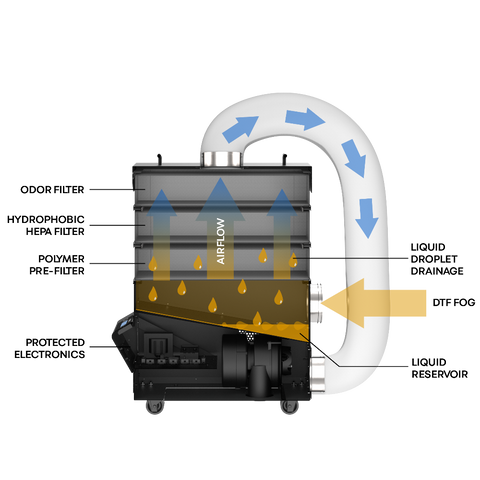

Reverse Flow Configuration
Other systems route the air from the top of the filters to the bottom. The Filtrabox DTF fume extractors reverse the direction of flow, from the bottom to the top. This allows gravity to assist in draining the accumulated liquid within the filters into the built-in reservoir below for more capacity. This novel arrangement also protects the electronics and blowers from contact with the liquid.
Intelligent Flow Regulator
As filters become loaded with contaminants over time, they become more restrictive to airflow. The intelligent flow regulator proportionally increases power to the blowers to automatically overcome the restrictions and maintain consistent fume extraction. Just enter your flow setpoint and Filtrabox does the rest. Filtrabox will also let you know when to change filters.
Slim-Line Design
Others try to achieve space savings by offering smaller machines. But this results in less filter capacity, more noise, and less airflow. The Slim-line design shrinks the width of the extractor and relocates critical performance features into the plentiful depth dimension, allowing for maximum airflow, filter capacity, and noise reduction in a space-saving package -no compromises.

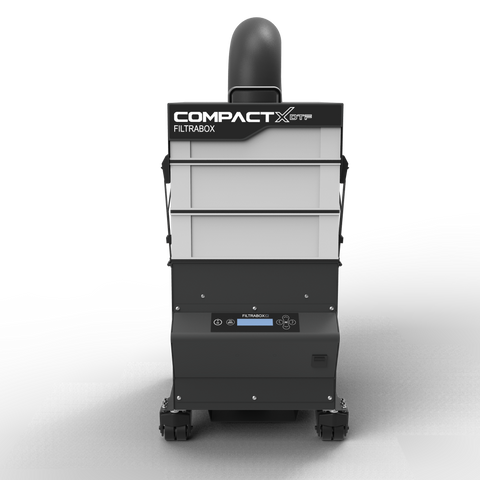

Robust, Simple User Interface
Dust, splash-proof, and impact-resistant, the new membrane touchpad interface offers both improved protection against industrial contaminants and simplified intuitive control. A fume extractor should simply keep the air clean and work when you want it to work. The interface is canted to an optimal angle for better viewing clarity and easy touch actuation.
Fast and Friendly Tech Support: Modularity for Serviceability
Our fume extractors comprise many complex electronics components and sensors to monitor and control their performance. However, we have simplified the Filtrabox by consolidating the components into two simple and removable modules:
Electronics Module: This module includes all the interface, control, and power systems.
Blower Module: This module includes the blower and flow sensor.
In the event of a field issue, our tech support need only focus on diagnosing two modules to quickly dispatch the appropriate module to you for immediate replacement. The modules are simple to replace with only a few plug-and-play wire harnesses – no tech experience required.
Extreme Air Power: Digital Blower w/ Hyper bearings
All Filtrabox systems use digital blowers to create powerful, reliable suction. Traditional brushed blowers inevitably wear out, lose suction and need replacement. Filtrabox’s combination of digital contactless rotors and contaminant-resistant hyper bearings allows for extreme rotational speeds and maintenance-free operation for years; more suction power – no maintenance.
|
