Uninet DTF 6000 Digital Transfer Printer

UNINET DTF 6000 Digital Transfer Printer

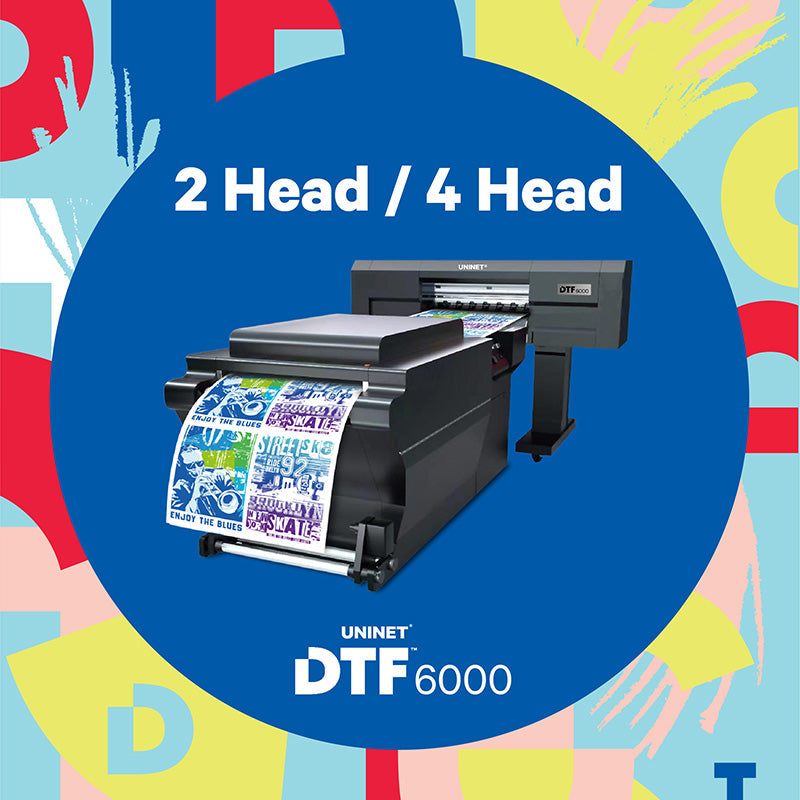

Available in 2 head and 4 head configurations!

UNINET™ DTF™ 6000 printing system features 2 next gen printheads, embedded roll feeder and in-line powder applicator. With a productivity output of 200% to 400% more than DTG systems (that are priced between $20,000 and $50,000), it comes as no surprise that UNINET™ DTF™ 6000 system is being assimilated into print shops of all sizes. It produces durable and intense color prints, is built on the next-generation robust and reliable Epson I3200 engine (dual printhead system included) and professionally assembled and enhanced.

Available in 2 head and 4 head configurations!

DTF™ systems require constant use and maintenance. This is not for the occasional user!

*This product is excluded from all promotional discounts and offers.

**Once inks are installed, printers cannot be returned to us.

• Accepts rolls up to 24” wide

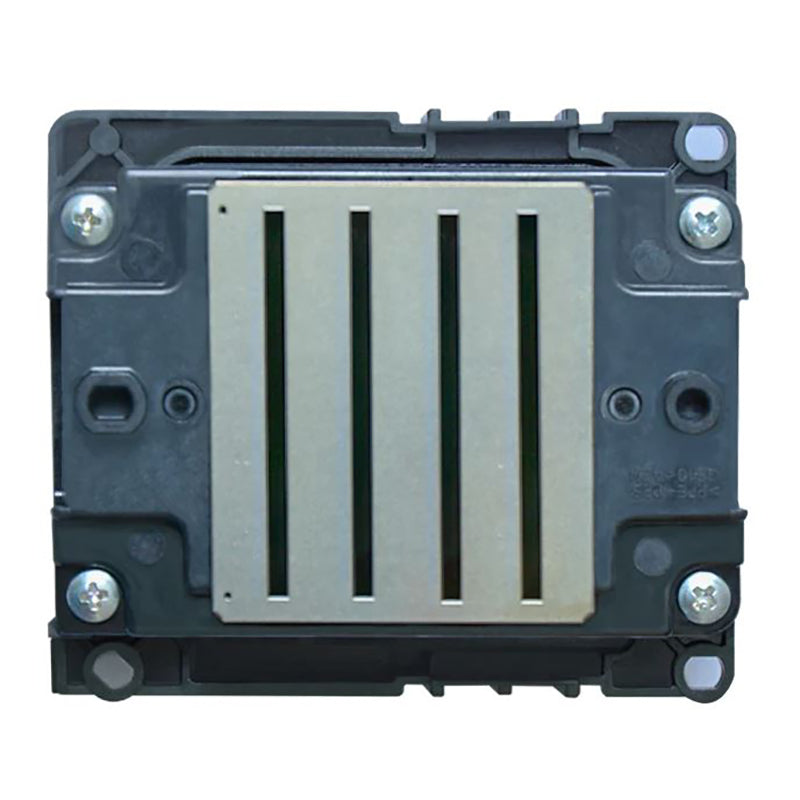

• Dual Printhead Technology (1 Printhead for White and 1 Printhead for CMYK) - doubling the output and 1/2 the time over 1 printhead systems
• Continuous Ink Tank Feed System
• Humidity Sensor
• RIP Software Included (Built-in Ethernet Port on PC is Required)
• XL DTF™ Powder Application Machine Included
• Upgrade ready – double your output with 4 printheads which allows for the output of up to 180 sq feet per hour
• Printer Dimensions – 78.7" x 35.4" x 55" / 200cm x 90cm x 140cm
• Printer Weight – 551lbs / 250kg
• APD Dimensions – 100" x 46" x 48.8" / 254cm x 117cm x 124cm
• ADP Weight – 705lbs / 320kg

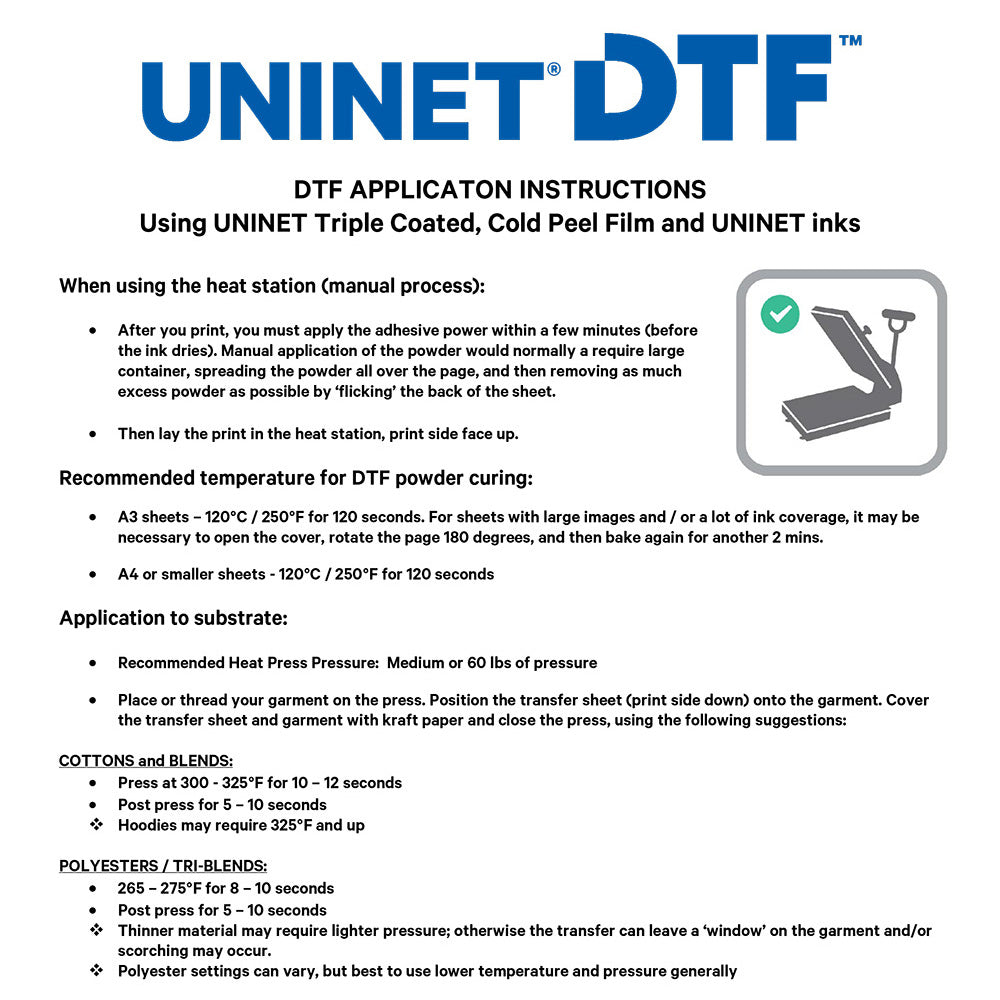

When using the heat station (manual process):
• After you print, you must apply the adhesive power within a few minutes (before the ink dries). Manual application of the powder would normally a require large container, spreading the powder all over the page, and then removing as much excess powder as possible by ‘flicking’ the back of the sheet.
• Then lay the print in the heat station, print side face up.

Recommended temperature for DTF powder curing:
• A3 sheets – 120°C / 250°F for 120 seconds. For sheets with large images and / or a lot of ink coverage, it may be necessary to open the cover, rotate the page 180 degrees, and then bake again for another 2 mins.
• A4 or smaller sheets - 120°C / 250°F for 120 seconds

Application to substrate:
• Recommended Heat Press Pressure: Medium or 60 lbs of pressure
• Place or thread your garment on the press. Position the transfer sheet (print side down) onto the garment. Cover the transfer sheet and garment with kraft paper and close the press, using the following suggestions:

COTTONS and BLENDS: • Press at 300 - 325°F for 10 – 12 seconds • Post press for 5 – 10 seconds *Hoodies may require 325°F and up

POLYESTERS / TRI-BLENDS: • 265 – 275°F for 8 – 10 seconds • Post press for 5 – 10 seconds * Thinner material may require lighter pressure; otherwise the transfer can leave a ‘window’ on the garment and/or scorching may occur. *Polyester settings can vary, but best to use lower temperature and pressure generally

50 / 50: • 275°F for 12 seconds • Post press for 5 – 10 seconds

COTTON: • 310 - 325°F for 15 seconds • Post press for 10 seconds

FINISHING: • Matte finish – Kraft paper, T Seal or parchment cover sheet. • Shiny/gloss finish - Teflon cover sheet *Specialty silicone pads with texture can be used to prevent gloss look, gives print a nice textured feel.

ADDITIONAL SUGGESTIONS: • Thicker fabrics require more heat, generally. • Hats (poly) may require 245 - 250°F for 5 - 8 seconds • Umbrellas, EZ-ups, stadium chairs will require testing and trial and error. *Be careful of dye / ink migration with polyester textiles - perform a 24hr test (fine tuning) to see if the ink migrates (clothing dye reacts with the DTF ink)

GARMENT TYPES: • DTF works with almost all fabrics and garment types: • Combed Cotton, Ring Spun Cotton, Organic Cotton, Polyesters, Blended Fabrics, Poly-Cottons, Tri-Blends, Polyester-Spandex, Leather, Vinyl, Denim, Canvas and much more.
