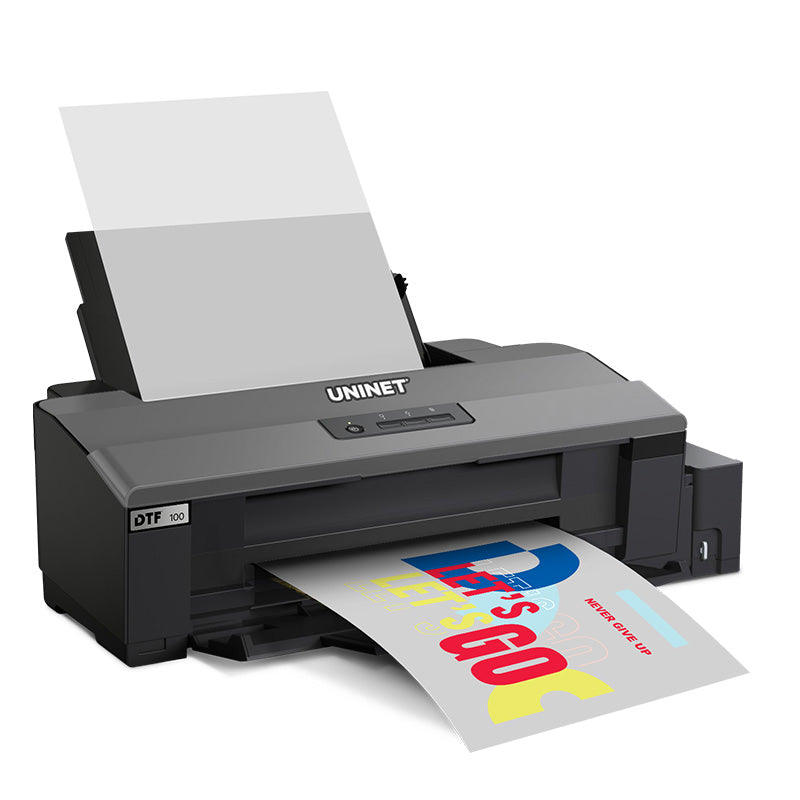

Uninet DTF 100 Digital Transfer Printer (Web Starter Bundle)

UNINET DTF 100 Digital Transfer Printer (Web Starter Bundle)

The ideal on-demand starter DTF printer

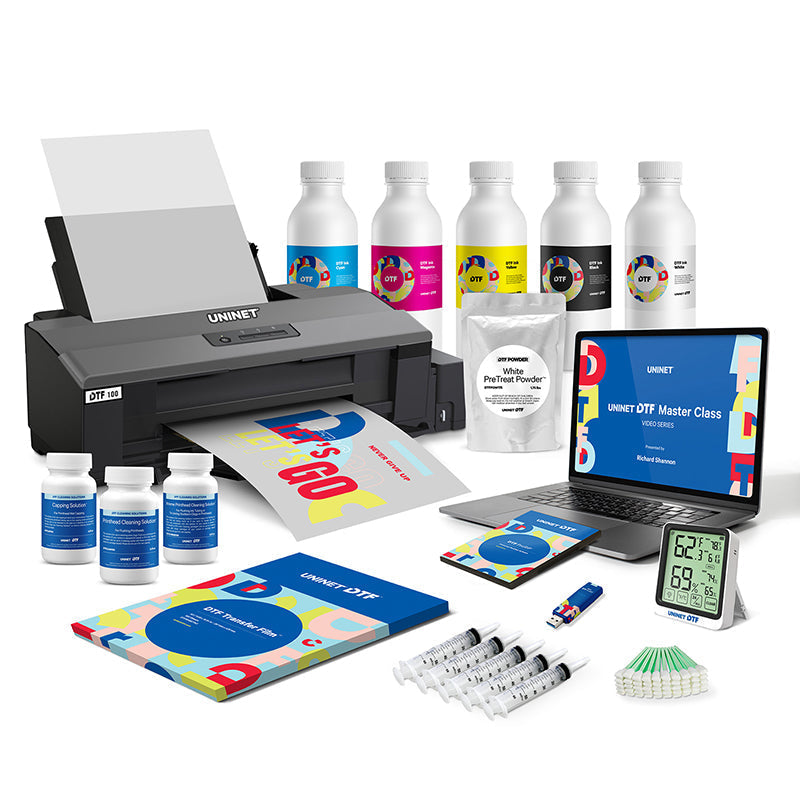

The UNINET DTF 100 printing system features cut sheet transfer film printing, white ink circulation system, ProRIP software, training, and onboarding. The UNINET DTF 100 produces durable and intense color prints, is built on the popular and reliable Epson engine, professionally modified and enhanced by UNINET. Choose this system if you are NOT batch printing and need the convenience of one at a time, cut sheet printing with manual adhesive application.

The UNINET DTF 100 has significant advantages over comparative systems. Works for multiple fabric types (cotton, poly, blends and more), and works on both light and dark textiles.

*This product is excluded from all promotional discounts and offers.

**Once inks are installed, printers cannot be returned to us.

• Accepts transfer sheets up to 13” wide

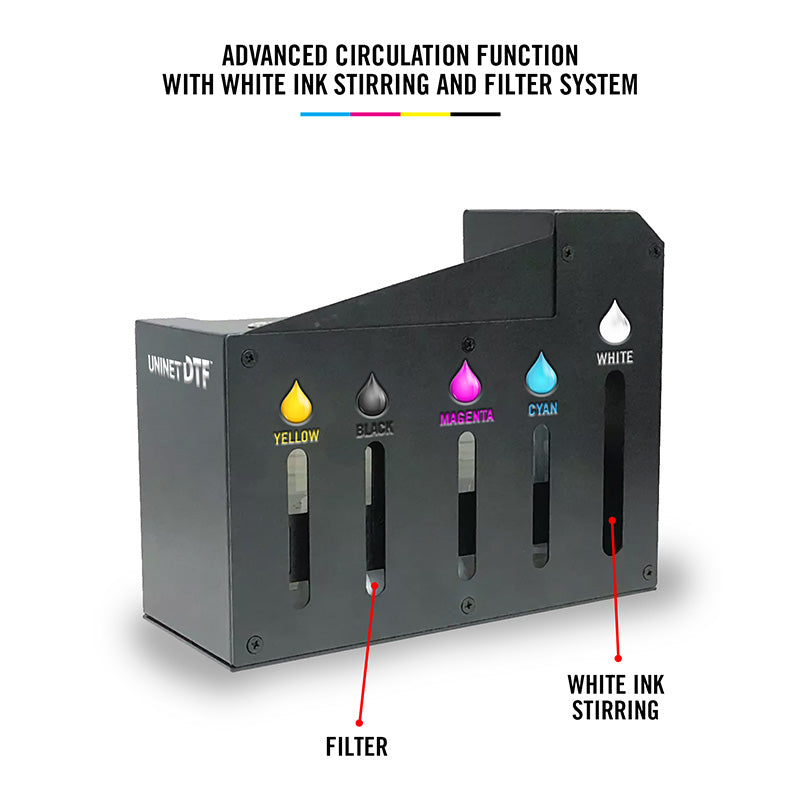

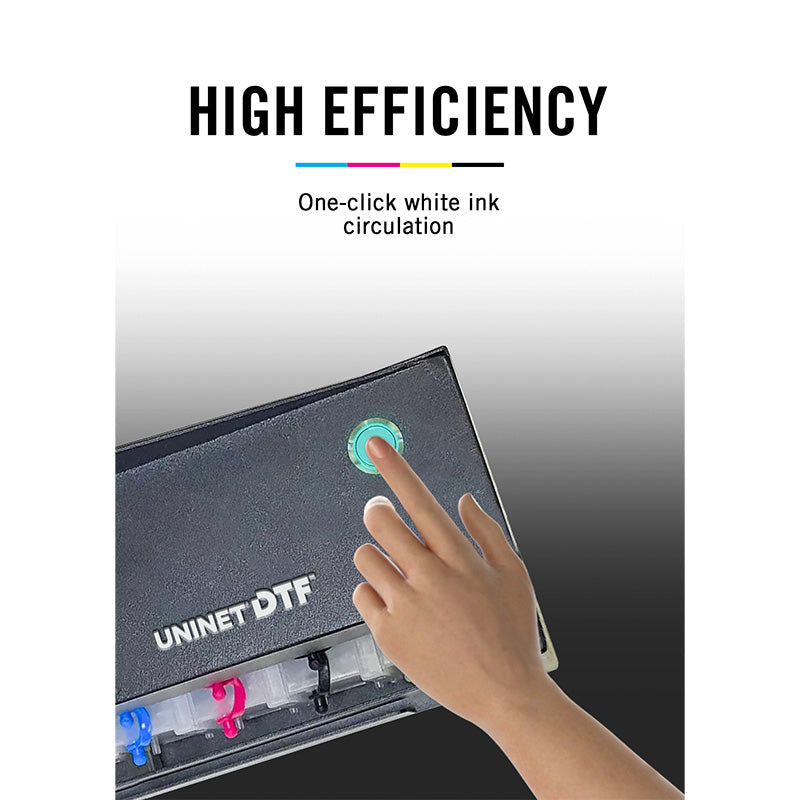

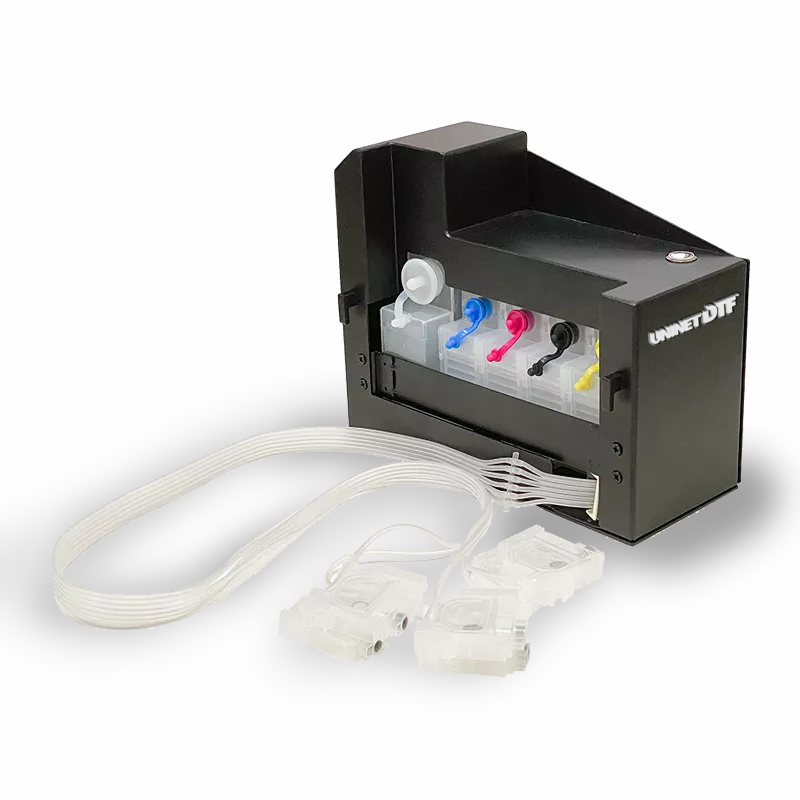

• WICS (White Ink Circulation System)
• DTF Sheet Exit Tray - to guide the transfer sheets out of the printer after they have been printed and avoid the paper getting buckled or caught by the rollers. Prevents film curling and ink smearing.
• Ink Tank System (no cartridges needed) which is easy to maintain
• Print speed: up to 10 square ft / hr (~8 A3 pages / hr)
• 1440 dpi
• Printer Dimensions - 27.8" x 12.7" x 8.5" / 70.5cm x 32.2cm x 21.5cm
• Printer Weight – 28lbs / 12.7kg

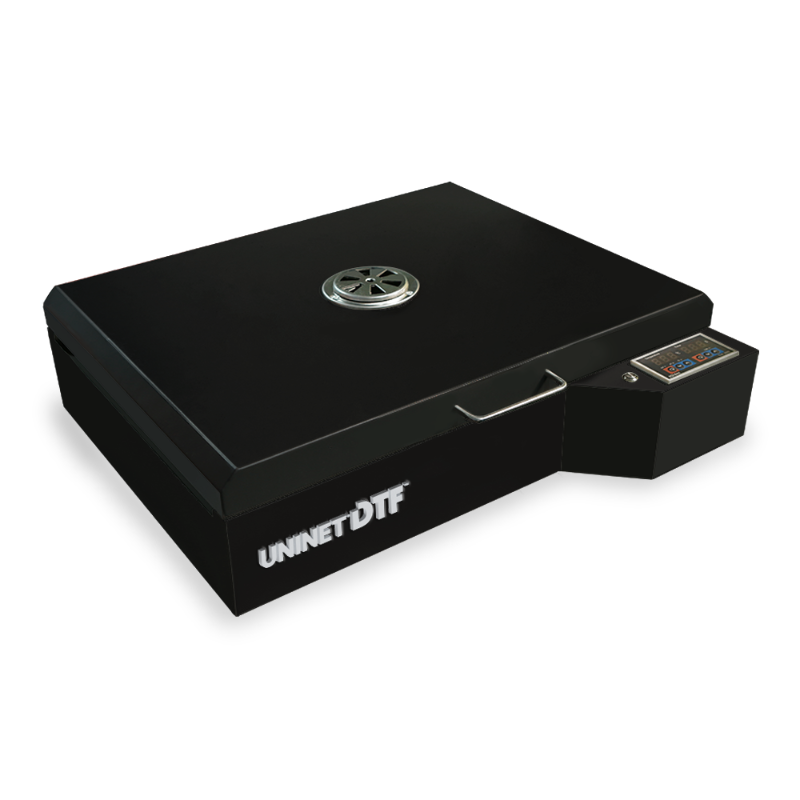

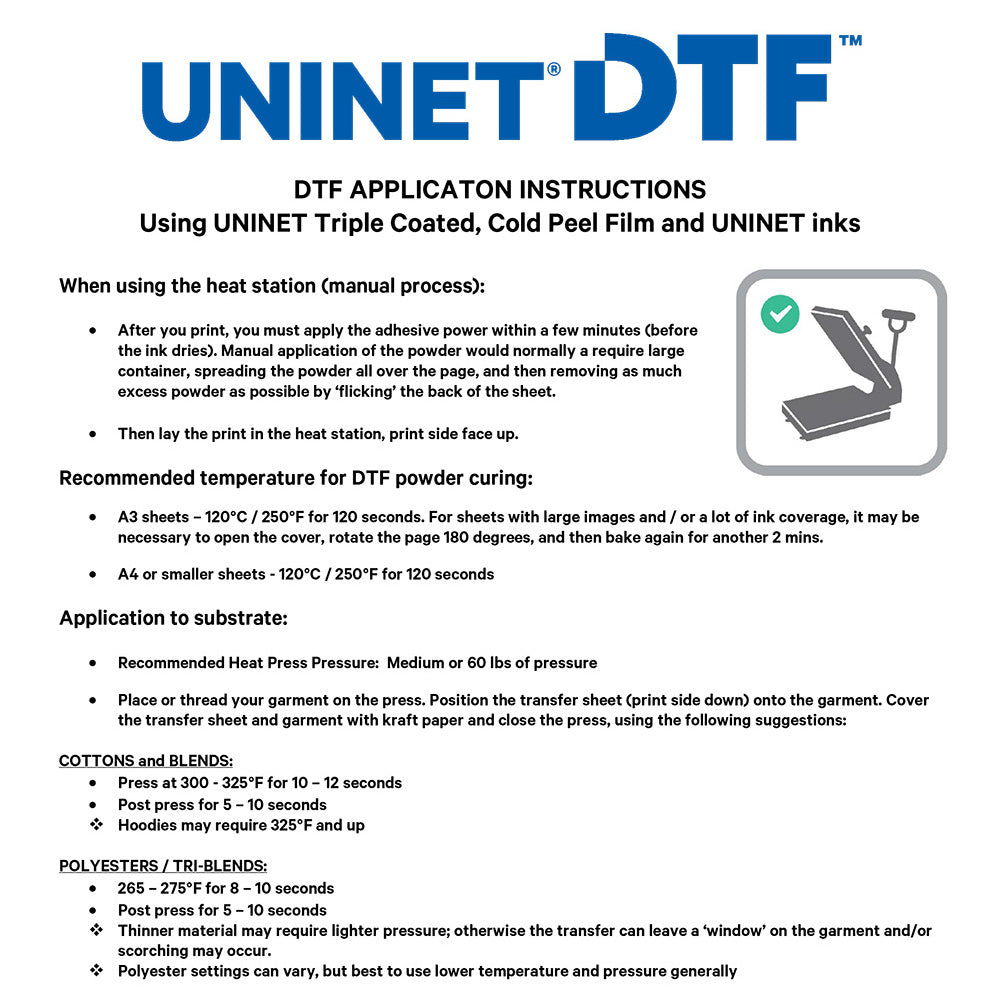

When using the heat station (manual process):
• After you print, you must apply the adhesive power within a few minutes (before the ink dries). Manual application of the powder would normally a require large container, spreading the powder all over the page, and then removing as much excess powder as possible by ‘flicking’ the back of the sheet.
• Then lay the print in the heat station, print side face up.

Recommended temperature for DTF powder curing:
• A3 sheets – 120°C / 250°F for 120 seconds. For sheets with large images and / or a lot of ink coverage, it may be necessary to open the cover, rotate the page 180 degrees, and then bake again for another 2 mins.
• A4 or smaller sheets - 120°C / 250°F for 120 seconds

Application to substrate:
• Recommended Heat Press Pressure: Medium or 60 lbs of pressure
• Place or thread your garment on the press. Position the transfer sheet (print side down) onto the garment. Cover the transfer sheet and garment with kraft paper and close the press, using the following suggestions:

COTTONS and BLENDS: • Press at 300 - 325°F for 10 – 12 seconds • Post press for 5 – 10 seconds *Hoodies may require 325°F and up

POLYESTERS / TRI-BLENDS: • 265 – 275°F for 8 – 10 seconds • Post press for 5 – 10 seconds * Thinner material may require lighter pressure; otherwise the transfer can leave a ‘window’ on the garment and/or scorching may occur. *Polyester settings can vary, but best to use lower temperature and pressure generally

50 / 50: • 275°F for 12 seconds • Post press for 5 – 10 seconds

COTTON: • 310 - 325°F for 15 seconds • Post press for 10 seconds

FINISHING: • Matte finish – Kraft paper, T Seal or parchment cover sheet. • Shiny/gloss finish - Teflon cover sheet *Specialty silicone pads with texture can be used to prevent gloss look, gives print a nice textured feel.

ADDITIONAL SUGGESTIONS: • Thicker fabrics require more heat, generally. • Hats (poly) may require 245 - 250°F for 5 - 8 seconds • Umbrellas, EZ-ups, stadium chairs will require testing and trial and error. *Be careful of dye / ink migration with polyester textiles - perform a 24hr test (fine tuning) to see if the ink migrates (clothing dye reacts with the DTF ink)

GARMENT TYPES: • DTF works with almost all fabrics and garment types: • Combed Cotton, Ring Spun Cotton, Organic Cotton, Polyesters, Blended Fabrics, Poly-Cottons, Tri-Blends, Polyester-Spandex, Leather, Vinyl, Denim, Canvas and much more.
