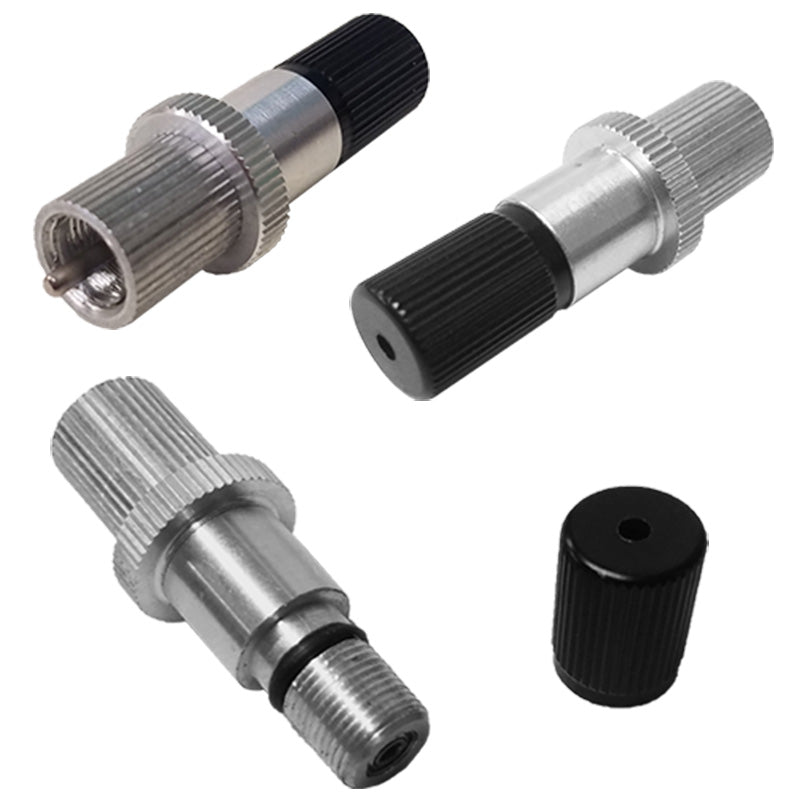

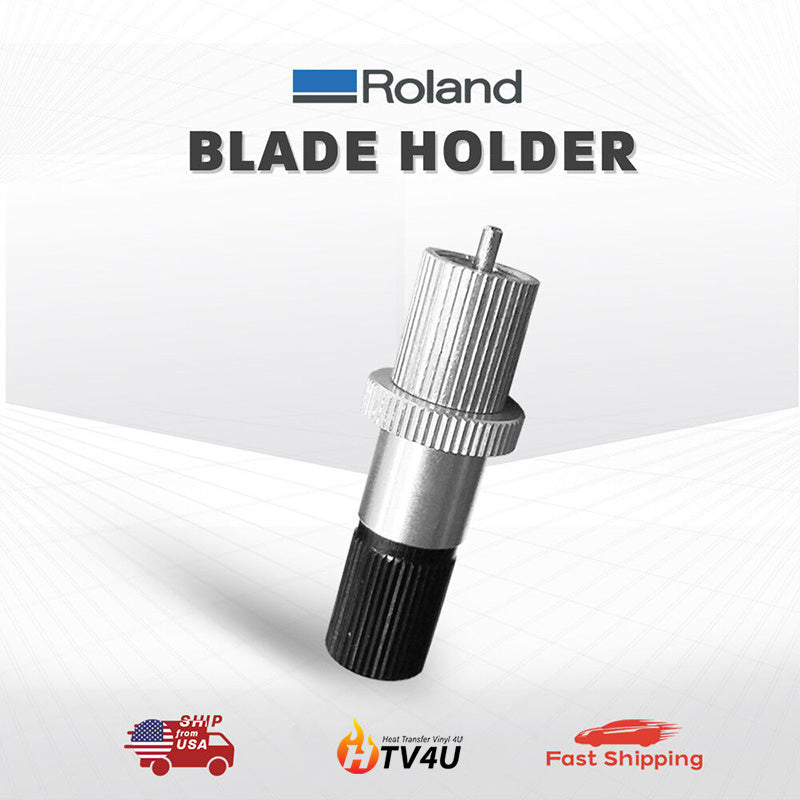

Roland Vinyl Cutter Blade Holder

Roland Vinyl Cutter Blade Holder

Regular price $6.99 USD
Regular price Sale price $6.99 USD
Sale Sold out

Roland Vinyl Cutter Blade Holder

Adopted imported high-quality aluminum alloy and imported resin material, and produced by elaborate machines.

**Works with Roland GX-24.

*This product is excluded from all promotional discounts and offers.

Roland Vinyl Cutter Blade Holder
DESCRIPTION:
Adopted imported high-quality aluminum alloy and imported resin material and produced by elaborate machines.
High precision, durable and extra long life.
High quality copper bearing, through precision grinding, not easy to wear during use.
NOTE:
High quality copper bearing, through precision grinding, inner race is thicker than ordinary blade holder bearing, high wear resistance and not easy to make the blade concentric circles deviation or knife jumping and other adverse circumstances.

1.Do not extend the knife point too long, the extended length should be within 0.5 mm.
2.When cutting small letters, you can extend the knife point longer to avoid carved strokes being took away by blade holder on self-adhesive tape.
3.If there is something wrong with blade holder, try to drop some motor oil in the bearings, and then you can insert the blade and rotate to lubricate. If you still cannot solve the problem, you may consider replacing a new knife holder.

Using Guide
1.It works perfect if cutting blades stretch out not too long but within 0.5mm.
2.When cutting small letters, cutting blade could stretch out a little bit longer.
3.Dropping oil on the bearing inside the blade holder is a good way of maintenance.
SPECIFICATION:
Diameter (Clamp): 11.5mm
Diameter (Blade): 2mm
Length (Clamp to down): 25mm
Overall Length: 46.5mm
